OpenAPI
Wow OpenAPI 模块提供了基于 OpenAPI 规范的 API 接口。
安装
kotlin
implementation("me.ahoo.wow:wow-openapi")groovy
implementation 'me.ahoo.wow:wow-openapi'xml
<dependency>
<groupId>me.ahoo.wow</groupId>
<artifactId>wow-openapi</artifactId>
<version>${wow.version}</version>
</dependency>Swagger-UI

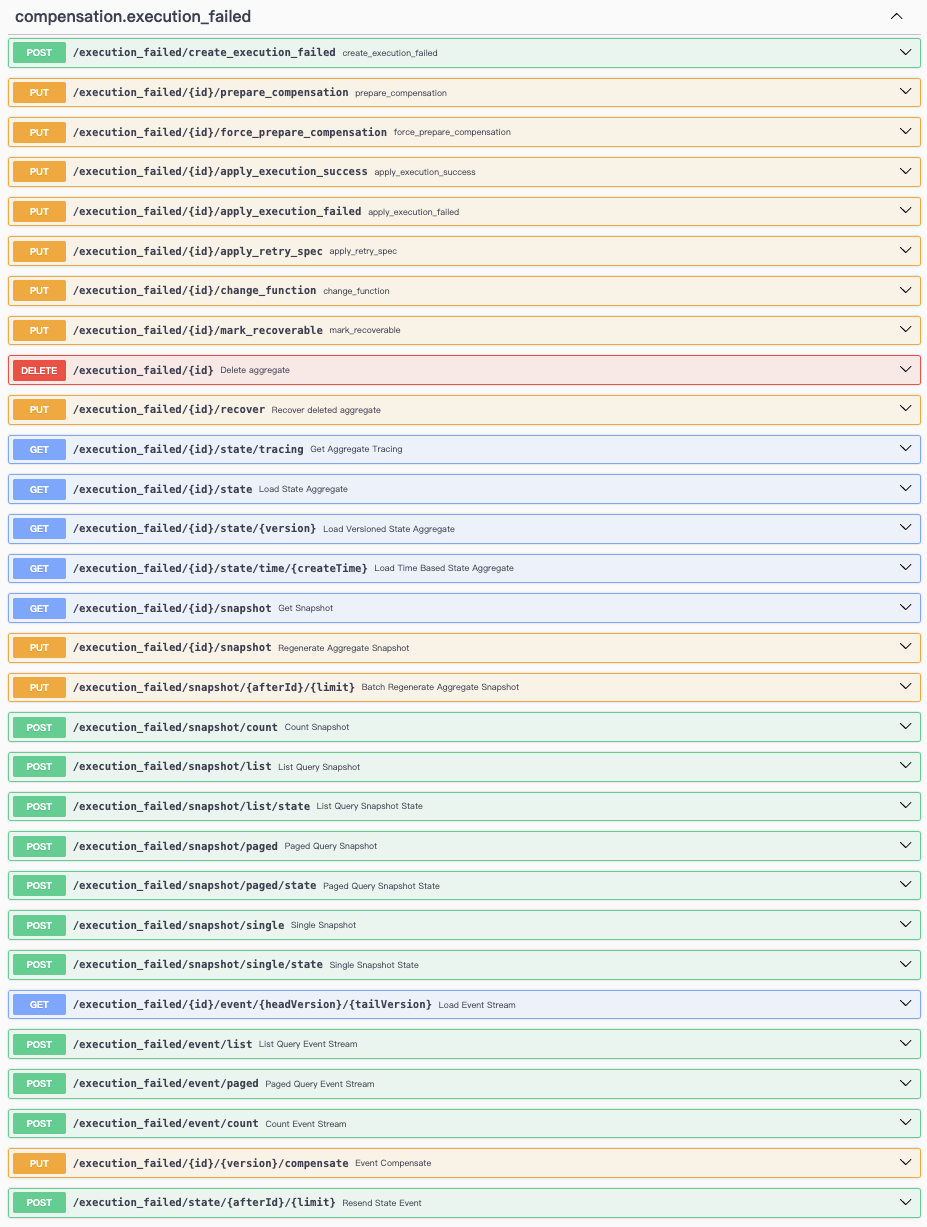

Swagger-UI 是一个基于 OpenAPI 规范的 API 文档工具，可以通过 Swagger-UI 来查看和测试 API 接口。
全局路由规范
GetWowMetadataRouteSpec
GetWowMetadataRouteSpec 提供了通过 RESTful API 获取 Wow 编译时元数据的能力，以便验证 Wow 元数据(WowMetadata) 定义的正确性。
shell
curl -X 'GET' \
'http://localhost:8080/wow/metadata' \
-H 'accept: application/json'json
{
"contexts": {
"example-service": {
"alias": "example",
"scopes": [
"me.ahoo.wow.example.server",
"me.ahoo.wow.example.domain",
"me.ahoo.wow.example.api"
],
"aggregates": {
"cart": {
"scopes": [
"me.ahoo.wow.example.api.cart"
],
"type": "me.ahoo.wow.example.domain.cart.Cart",
"tenantId": "(0)",
"id": null,
"commands": [
"me.ahoo.wow.example.api.cart.ChangeQuantity",
"me.ahoo.wow.example.api.cart.RemoveCartItem",
"me.ahoo.wow.example.api.cart.AddCartItem"
],
"events": [
"me.ahoo.wow.example.api.cart.CartItemAdded",
"me.ahoo.wow.example.api.cart.CartQuantityChanged",
"me.ahoo.wow.example.api.cart.CartItemRemoved"
]
},
"order": {
"scopes": [
"me.ahoo.wow.example.api.order"
],
"type": "me.ahoo.wow.example.domain.order.Order",
"tenantId": null,
"id": null,
"commands": [
"me.ahoo.wow.example.api.order.ChangeAddress",
"me.ahoo.wow.example.api.order.ShipOrder",
"me.ahoo.wow.example.api.order.PayOrder",
"me.ahoo.wow.example.api.order.ReceiptOrder",
"me.ahoo.wow.example.api.order.CreateOrder"
],
"events": [
"me.ahoo.wow.example.api.order.OrderShipped",
"me.ahoo.wow.example.api.order.OrderCreated",
"me.ahoo.wow.example.api.order.AddressChanged",
"me.ahoo.wow.example.api.order.OrderReceived",
"me.ahoo.wow.example.api.order.OrderPaid"
]
}
}
},
"compensation-service": {
"alias": "compensation",
"scopes": [
"me.ahoo.wow.compensation"
],
"aggregates": {
"execution_failed": {
"scopes": [
"me.ahoo.wow.compensation.api"
],
"type": null,
"tenantId": "(0)",
"id": null,
"commands": [],
"events": []
}
}
}
}
}GenerateBIScriptRouteSpec
GenerateBIScriptRouteSpec 提供了通过 RESTful API 生成BI同步脚本的能力。
shell
curl -X 'GET' \
'http://localhost:8080/wow/bi/script' \
-H 'accept: application/sql'sql
-- global --
CREATE DATABASE IF NOT EXISTS bi_db ON CLUSTER '{cluster}';
CREATE DATABASE IF NOT EXISTS bi_db_consumer ON CLUSTER '{cluster}';
-- global --
-- clear --
-- example.order.clear --
------------------command------------------
DROP TABLE IF EXISTS bi_db.example_order_command ON CLUSTER '{cluster}' SYNC;
DROP TABLE IF EXISTS bi_db.example_order_command_local ON CLUSTER '{cluster}' SYNC;
DROP TABLE IF EXISTS bi_db_consumer.example_order_command_queue ON CLUSTER '{cluster}' SYNC;
DROP TABLE IF EXISTS bi_db_consumer.example_order_command_consumer ON CLUSTER '{cluster}' SYNC;
------------------command------------------
------------------state------------------
DROP TABLE IF EXISTS bi_db.example_order_state ON CLUSTER '{cluster}' SYNC;
DROP TABLE IF EXISTS bi_db.example_order_state_local ON CLUSTER '{cluster}' SYNC;
DROP TABLE IF EXISTS bi_db_consumer.example_order_state_queue ON CLUSTER '{cluster}' SYNC;
DROP TABLE IF EXISTS bi_db_consumer.example_order_state_consumer ON CLUSTER '{cluster}' SYNC;
------------------state------------------
------------------stateLast------------------
DROP TABLE IF EXISTS bi_db.example_order_state_last ON CLUSTER '{cluster}' SYNC;
DROP TABLE IF EXISTS bi_db.example_order_state_last_local ON CLUSTER '{cluster}' SYNC;
DROP TABLE IF EXISTS bi_db_consumer.example_order_state_last_consumer ON CLUSTER '{cluster}' SYNC;
------------------stateLast------------------
------------------expansion------------------
DROP TABLE IF EXISTS bi_db.example_order_state_last_root ON CLUSTER '{cluster}' SYNC;
DROP TABLE IF EXISTS bi_db.example_order_state_last_root_items ON CLUSTER '{cluster}' SYNC;
------------------expansion------------------
-- example.order.clear --
-- clear --
-- example.order.command --
CREATE TABLE IF NOT EXISTS bi_db.example_order_command_local ON CLUSTER '{cluster}'
(
id String,
context_name String,
aggregate_name String,
name String,
header Map(String, String),
aggregate_id String,
tenant_id String,
request_id String,
aggregate_version Nullable(UInt32),
is_create Bool,
allow_create Bool,
body_type String,
body String,
create_time DateTime('Asia/Shanghai')
) ENGINE = ReplicatedMergeTree(
'/clickhouse/{installation}/{cluster}/tables/{shard}/{database}/{table}', '{replica}')
PARTITION BY toYYYYMM(create_time)
ORDER BY id
;
CREATE TABLE IF NOT EXISTS bi_db.example_order_command ON CLUSTER '{cluster}'
AS bi_db.example_order_command_local
ENGINE = Distributed('{cluster}', bi_db, example_order_command_local, sipHash64(aggregate_id));
CREATE TABLE IF NOT EXISTS bi_db_consumer.example_order_command_queue ON CLUSTER '{cluster}'
(
data String
) ENGINE = Kafka('localhost:60886', 'wow.example.order.command', 'clickhouse_example_order_command_consumer',
'JSONAsString');
CREATE MATERIALIZED VIEW IF NOT EXISTS bi_db_consumer.example_order_command_consumer
ON CLUSTER '{cluster}'
TO bi_db.example_order_command
AS
SELECT JSONExtractString(data, 'id') AS id,
JSONExtractString(data, 'contextName') AS context_name,
JSONExtractString(data, 'aggregateName') AS aggregate_name,
JSONExtractString(data, 'name') AS name,
JSONExtract(data, 'header', 'Map(String, String)') AS header,
JSONExtractString(data, 'aggregateId') AS aggregate_id,
JSONExtractString(data, 'tenantId') AS tenant_id,
JSONExtractString(data, 'requestId') AS request_id,
JSONExtract(data, 'aggregateVersion',
'Nullable(UInt32)') AS aggregate_version,
JSONExtractBool(data, 'isCreate') AS is_create,
JSONExtractBool(data, 'allowCreate') AS allow_create,
JSONExtractString(data, 'bodyType') AS body_type,
JSONExtractString(data, 'body') AS body,
toDateTime64(
JSONExtractUInt(data, 'createTime') / 1000.0
, 3, 'Asia/Shanghai') AS create_time
FROM bi_db_consumer.example_order_command_queue
;
-- example.order.command --
-- example.order.stateEvent --
CREATE TABLE IF NOT EXISTS bi_db.example_order_state_local ON CLUSTER '{cluster}'
(
id String,
context_name String,
aggregate_name String,
header Map(String, String),
aggregate_id String,
tenant_id String,
command_id String,
request_id String,
version UInt32,
state String,
body String,
first_operator String,
first_event_time DateTime('Asia/Shanghai'),
create_time DateTime('Asia/Shanghai'),
deleted Bool
) ENGINE = ReplicatedReplacingMergeTree('/clickhouse/{installation}/{cluster}/tables/{shard}/{database}/{table}',
'{replica}', version)
PARTITION BY toYYYYMM(create_time)
ORDER BY (aggregate_id, version)
;
CREATE TABLE IF NOT EXISTS bi_db.example_order_state ON CLUSTER '{cluster}'
AS bi_db.example_order_state_local
ENGINE = Distributed('{cluster}', bi_db, example_order_state_local, sipHash64(aggregate_id));
CREATE TABLE IF NOT EXISTS bi_db_consumer.example_order_state_queue ON CLUSTER '{cluster}'
(
data String
) ENGINE = Kafka('localhost:60886', 'wow.example.order.state', 'clickhouse_example_order_state_consumer',
'JSONAsString');
CREATE MATERIALIZED VIEW IF NOT EXISTS bi_db_consumer.example_order_state_consumer
ON CLUSTER '{cluster}'
TO bi_db.example_order_state
AS
SELECT JSONExtractString(data, 'id') AS id,
JSONExtractString(data, 'contextName') AS context_name,
JSONExtractString(data, 'aggregateName') AS aggregate_name,
JSONExtract(data, 'header', 'Map(String, String)') AS header,
JSONExtractString(data, 'aggregateId') AS aggregate_id,
JSONExtractString(data, 'tenantId') AS tenant_id,
JSONExtractString(data, 'commandId') AS command_id,
JSONExtractString(data, 'requestId') AS request_id,
JSONExtractUInt(data, 'version') AS version,
JSONExtractString(data, 'state') AS state,
JSONExtractString(data, 'body') AS body,
JSONExtractString(data, 'firstOperator') AS first_operator,
toDateTime64(JSONExtractUInt(data, 'firstEventTime') / 1000.0
, 3, 'Asia/Shanghai') AS first_event_time,
toDateTime64(JSONExtractUInt(data, 'createTime') / 1000.0
, 3, 'Asia/Shanghai') AS create_time,
JSONExtractBool(data, 'deleted') AS deleted
FROM bi_db_consumer.example_order_state_queue
;
-- example.order.stateEvent --
-- example.order.stateLast --
CREATE TABLE IF NOT EXISTS bi_db.example_order_state_last_local ON CLUSTER '{cluster}'
(
id String,
context_name String,
aggregate_name String,
header Map(String, String),
aggregate_id String,
tenant_id String,
command_id String,
request_id String,
version UInt32,
state String,
body String,
first_operator String,
first_event_time DateTime('Asia/Shanghai'),
create_time DateTime('Asia/Shanghai'),
deleted Bool
) ENGINE = ReplicatedReplacingMergeTree('/clickhouse/{installation}/{cluster}/tables/{shard}/{database}/{table}',
'{replica}', version)
PARTITION BY sipHash64(aggregate_id) % 8
ORDER BY (aggregate_id)
;
CREATE TABLE IF NOT EXISTS bi_db.example_order_state_last ON CLUSTER '{cluster}'
AS bi_db.example_order_state_last_local
ENGINE = Distributed('{cluster}', bi_db, example_order_state_last_local, sipHash64(aggregate_id));
CREATE MATERIALIZED VIEW IF NOT EXISTS bi_db_consumer.example_order_state_last_consumer
ON CLUSTER '{cluster}'
TO bi_db.example_order_state_last
AS
SELECT *
FROM bi_db.example_order_state
;
-- example.order.stateLast --
-- example.order.expansion --
CREATE VIEW IF NOT EXISTS bi_db.example_order_state_last_root ON CLUSTER '{cluster}' AS
WITH
JSONExtractString(state, 'address') AS address
SELECT JSONExtract(state, 'id', 'String') AS id,
JSONExtract(state, 'customerId', 'String') AS customer_id,
JSONExtractArrayRaw(state, 'items') AS items,
JSONExtract(state, 'totalAmount', 'Decimal(38,18)') AS total_amount,
JSONExtract(state, 'paidAmount', 'Decimal(38,18)') AS paid_amount,
JSONExtract(state, 'status', 'String') AS status,
JSONExtract(state, 'payable', 'Decimal(38,18)') AS payable,
JSONExtract(address, 'country', 'String') AS address__country,
JSONExtract(address, 'province', 'String') AS address__province,
JSONExtract(address, 'city', 'String') AS address__city,
JSONExtract(address, 'district', 'String') AS address__district,
JSONExtract(address, 'detail', 'String') AS address__detail,
id AS __id,
aggregate_id AS __aggregate_id,
tenant_id AS __tenant_id,
command_id AS __command_id,
request_id AS __request_id,
version AS __version,
first_operator AS __first_operator,
first_event_time AS __first_event_time,
create_time AS __create_time,
deleted AS __deleted
FROM bi_db.example_order_state_last;
CREATE VIEW IF NOT EXISTS bi_db.example_order_state_last_root_items ON CLUSTER '{cluster}' AS
WITH
JSONExtractString(state, 'address') AS address, arrayJoin(JSONExtractArrayRaw(state, 'items')) AS items
SELECT JSONExtract(state, 'id', 'String') AS id,
JSONExtract(state, 'customerId', 'String') AS customer_id,
JSONExtract(state, 'totalAmount', 'Decimal(38,18)') AS total_amount,
JSONExtract(state, 'paidAmount', 'Decimal(38,18)') AS paid_amount,
JSONExtract(state, 'status', 'String') AS status,
JSONExtract(state, 'payable', 'Decimal(38,18)') AS payable,
JSONExtract(address, 'country', 'String') AS address__country,
JSONExtract(address, 'province', 'String') AS address__province,
JSONExtract(address, 'city', 'String') AS address__city,
JSONExtract(address, 'district', 'String') AS address__district,
JSONExtract(address, 'detail', 'String') AS address__detail,
JSONExtract(items, 'id', 'String') AS items__id,
JSONExtract(items, 'productId', 'String') AS items__product_id,
JSONExtract(items, 'price', 'Decimal(38,18)') AS items__price,
JSONExtract(items, 'quantity', 'Int32') AS items__quantity,
JSONExtract(items, 'totalPrice', 'Decimal(38,18)') AS items__total_price,
id AS __id,
aggregate_id AS __aggregate_id,
tenant_id AS __tenant_id,
command_id AS __command_id,
request_id AS __request_id,
version AS __version,
first_operator AS __first_operator,
first_event_time AS __first_event_time,
create_time AS __create_time,
deleted AS __deleted
FROM bi_db.example_order_state_last;
-- example.order.expansion --GenerateGlobalIdRouteSpec
GenerateGlobalIdRouteSpec 提供了通过 RESTful API 生成全局ID的能力。
shell
curl -X 'GET' \
'http://localhost:8080/wow/id/global' \
-H 'accept: text/plain'text
0U2MNGBQ0001001
